SEABOB F5 SR

The most powerful watercraft
The SEABOB F5 SR is the most powerful watercraft in the SEABOB F5 series. Its driving performance is unique. With 167.5 lbs. (76 kg), the SEABOB F5 SR’s E-Jet Power System produces a strong propulsive force. This engine power is controlled in 7 power levels. Cruise through the water at a relaxed pace in a low gear. In the higher gears, experience and feel the F5 SR’s impressive propulsion through the water. In addition to its strong engine power, the SEABOB F5 SR offers high-quality special equipment.

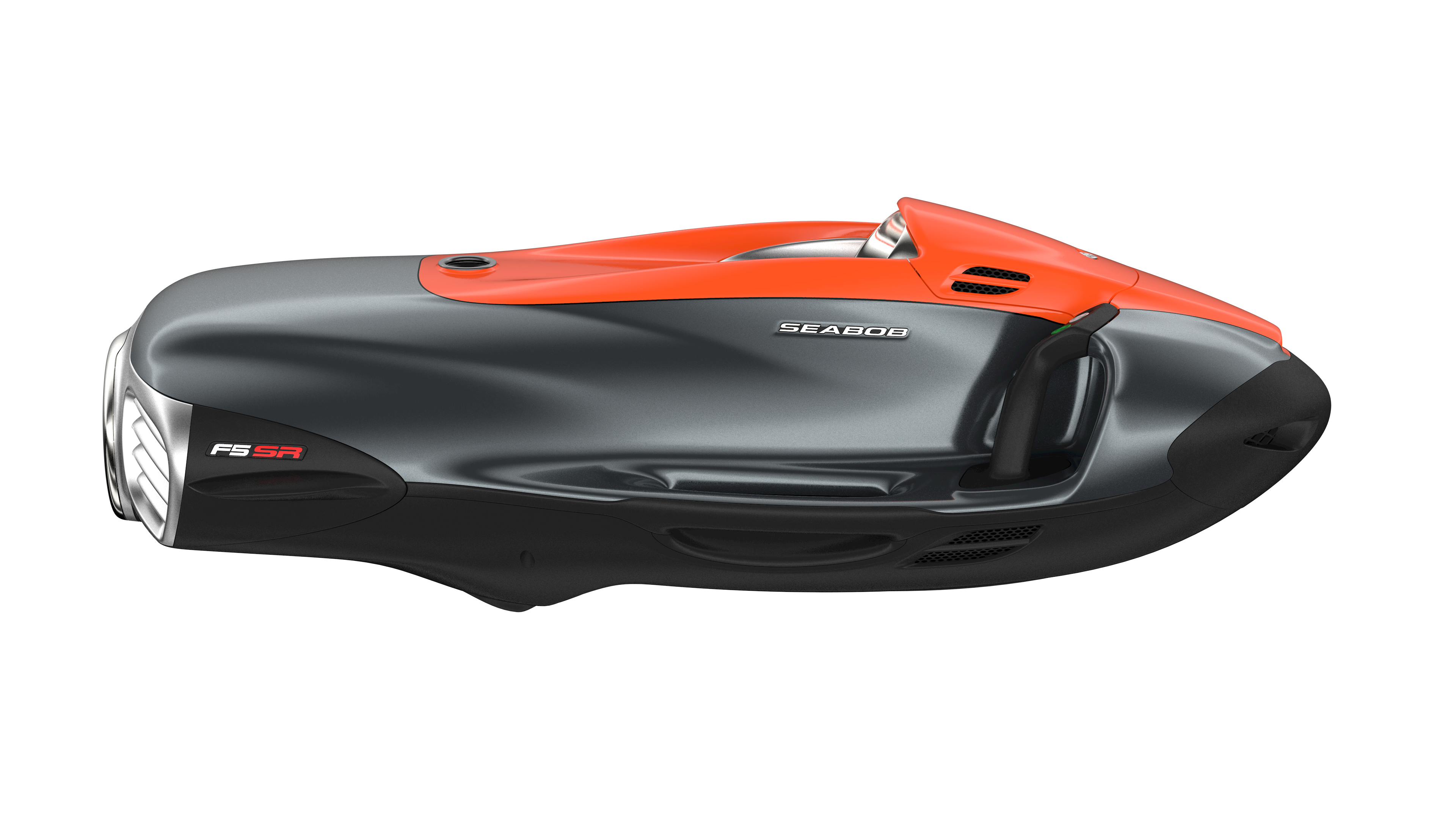

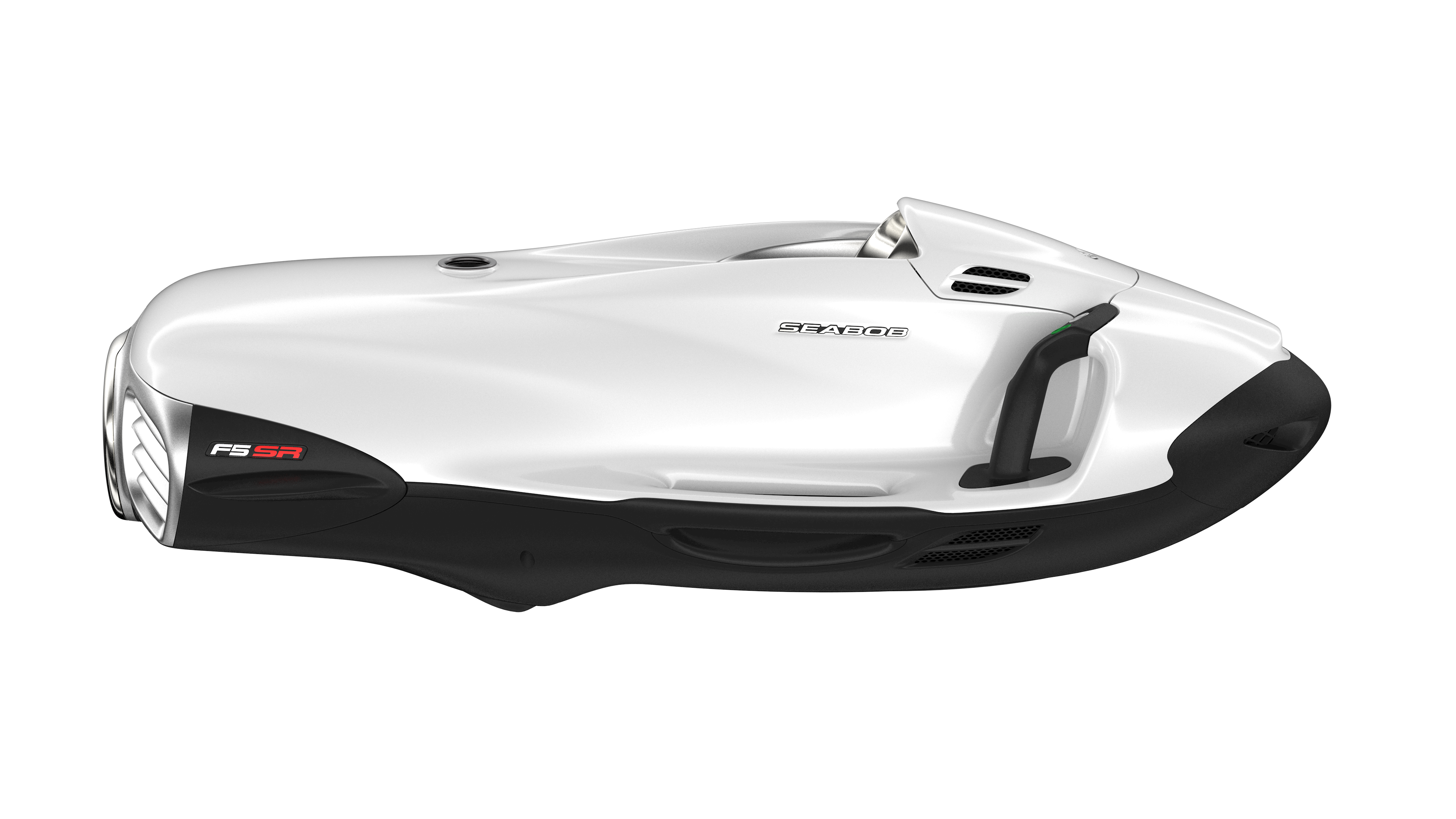

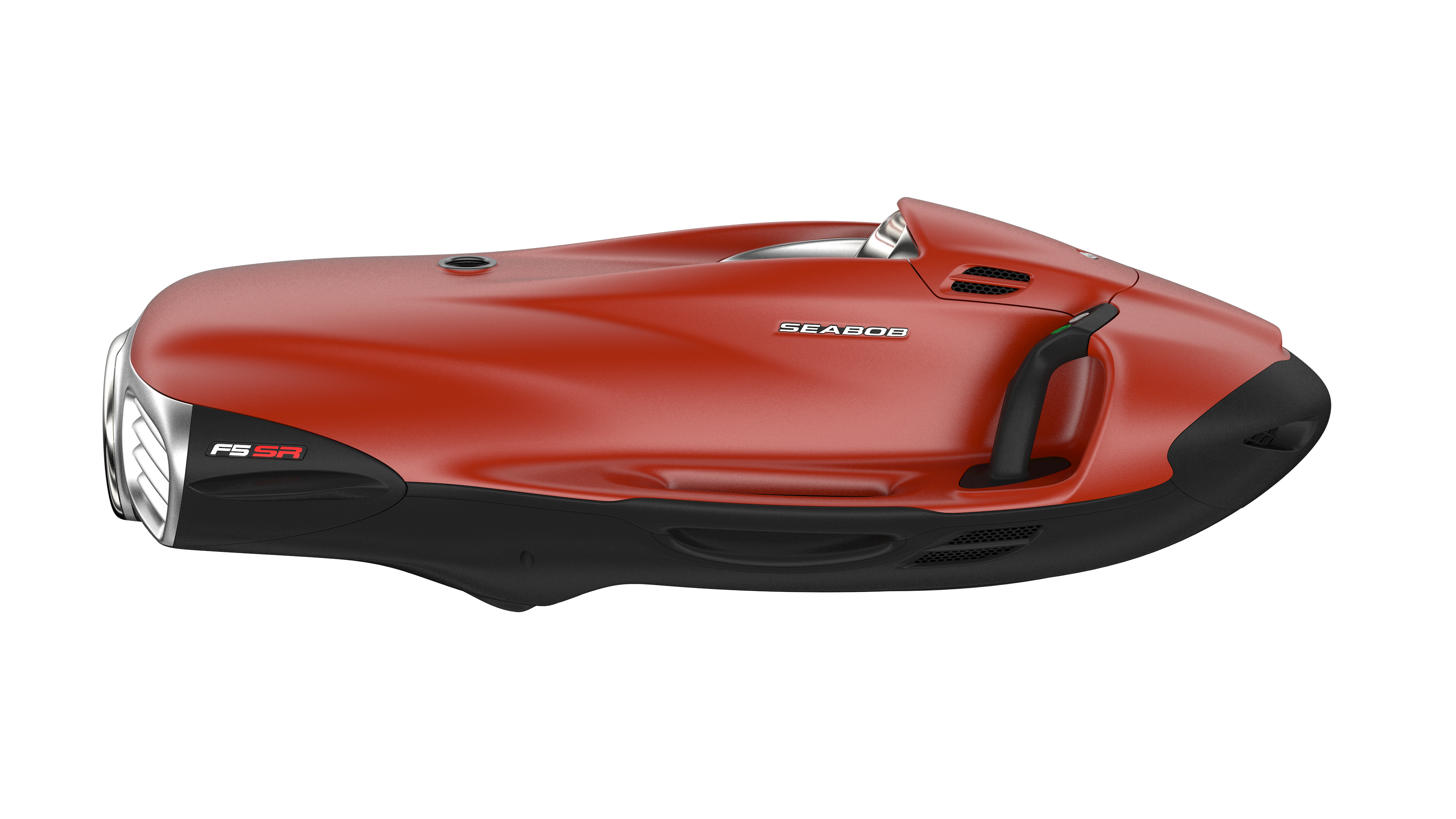

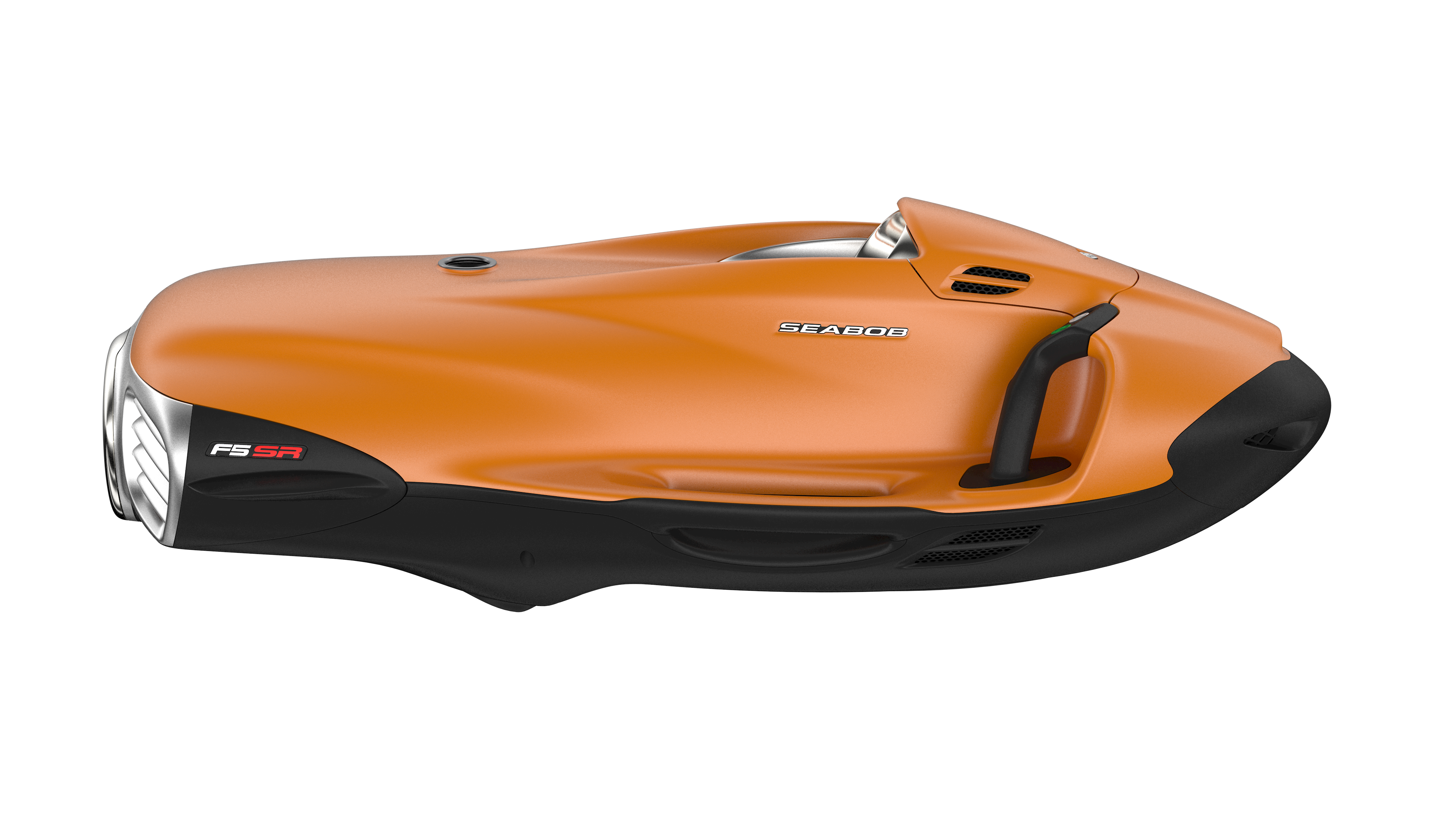

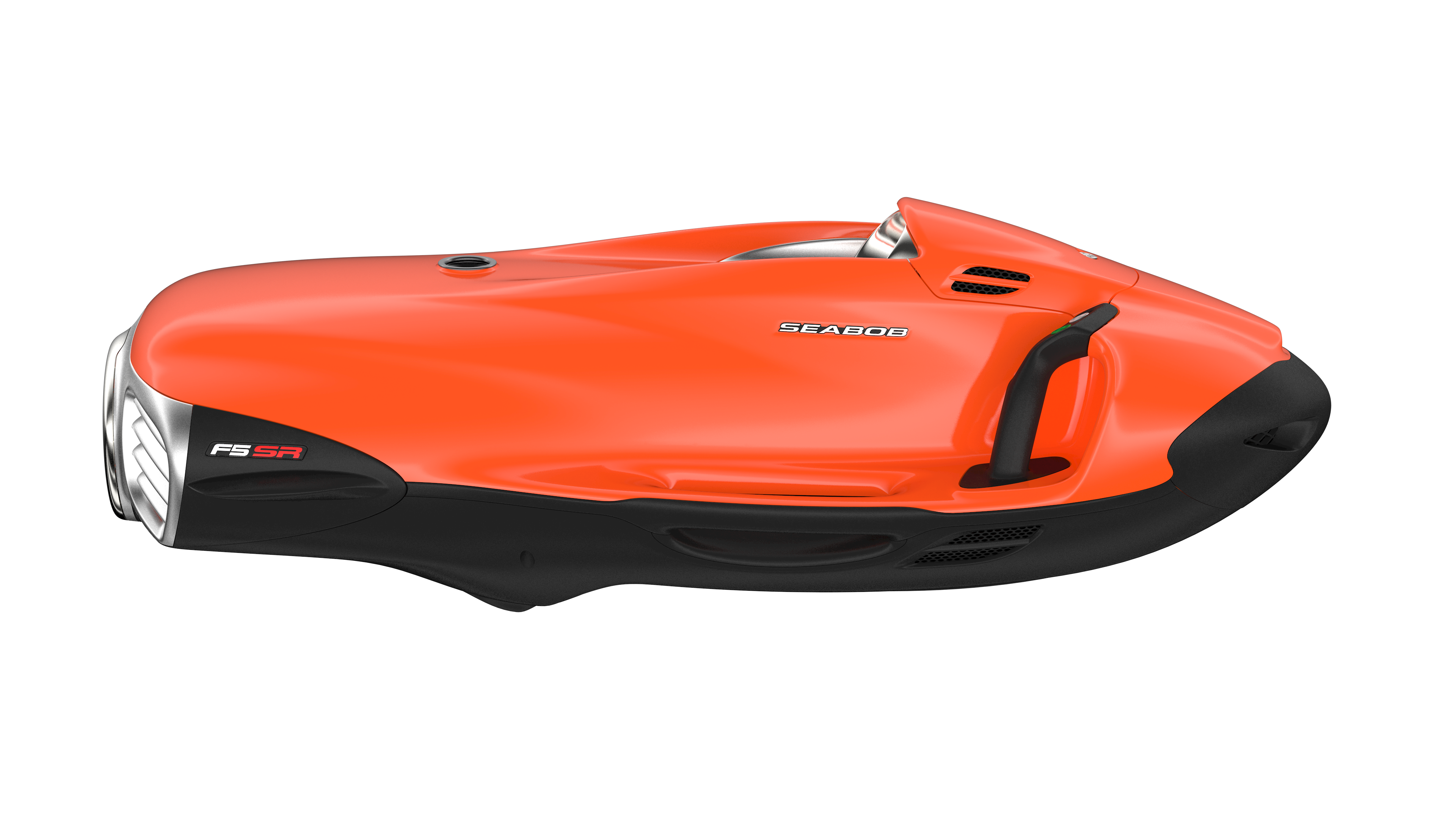

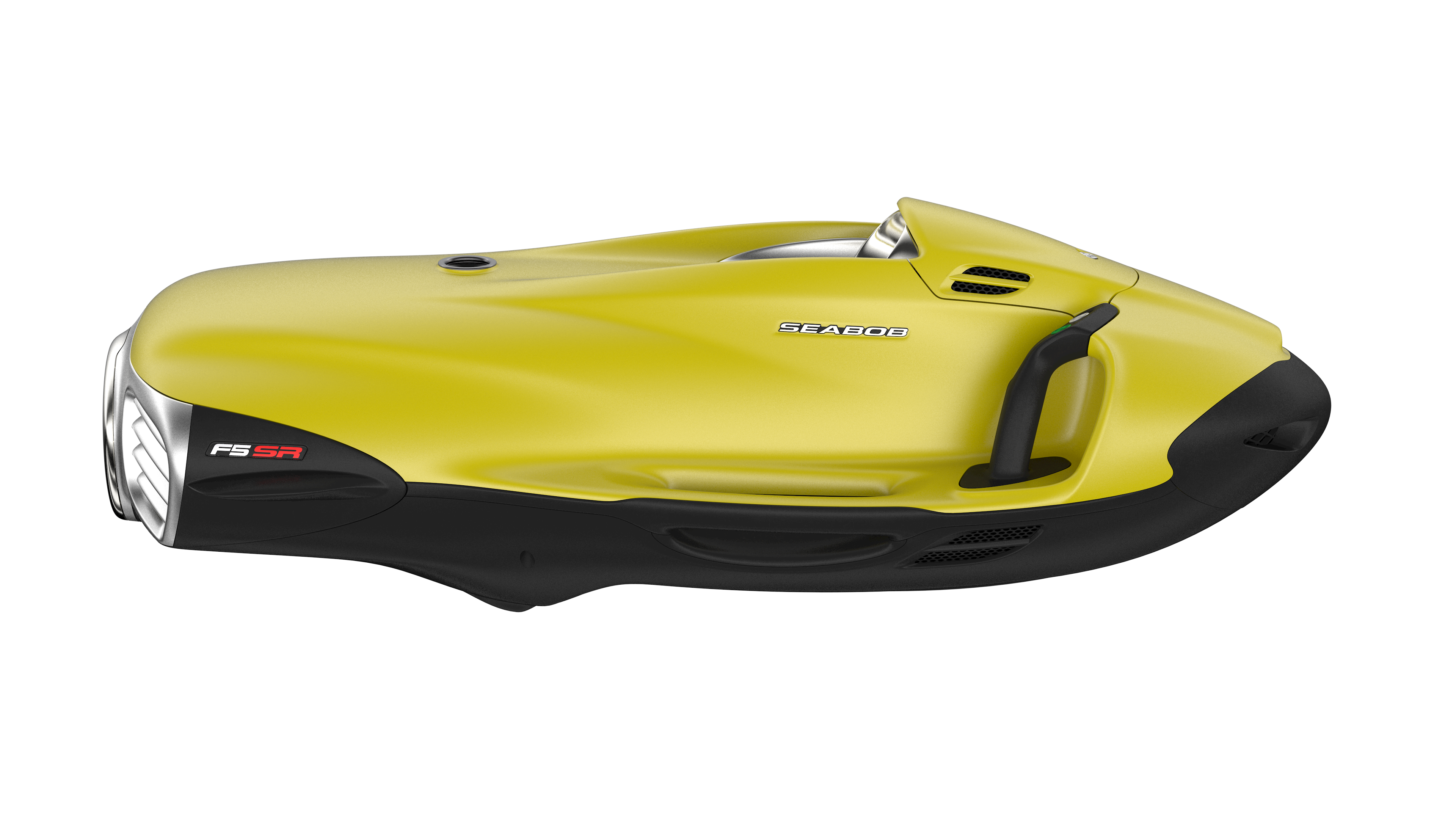

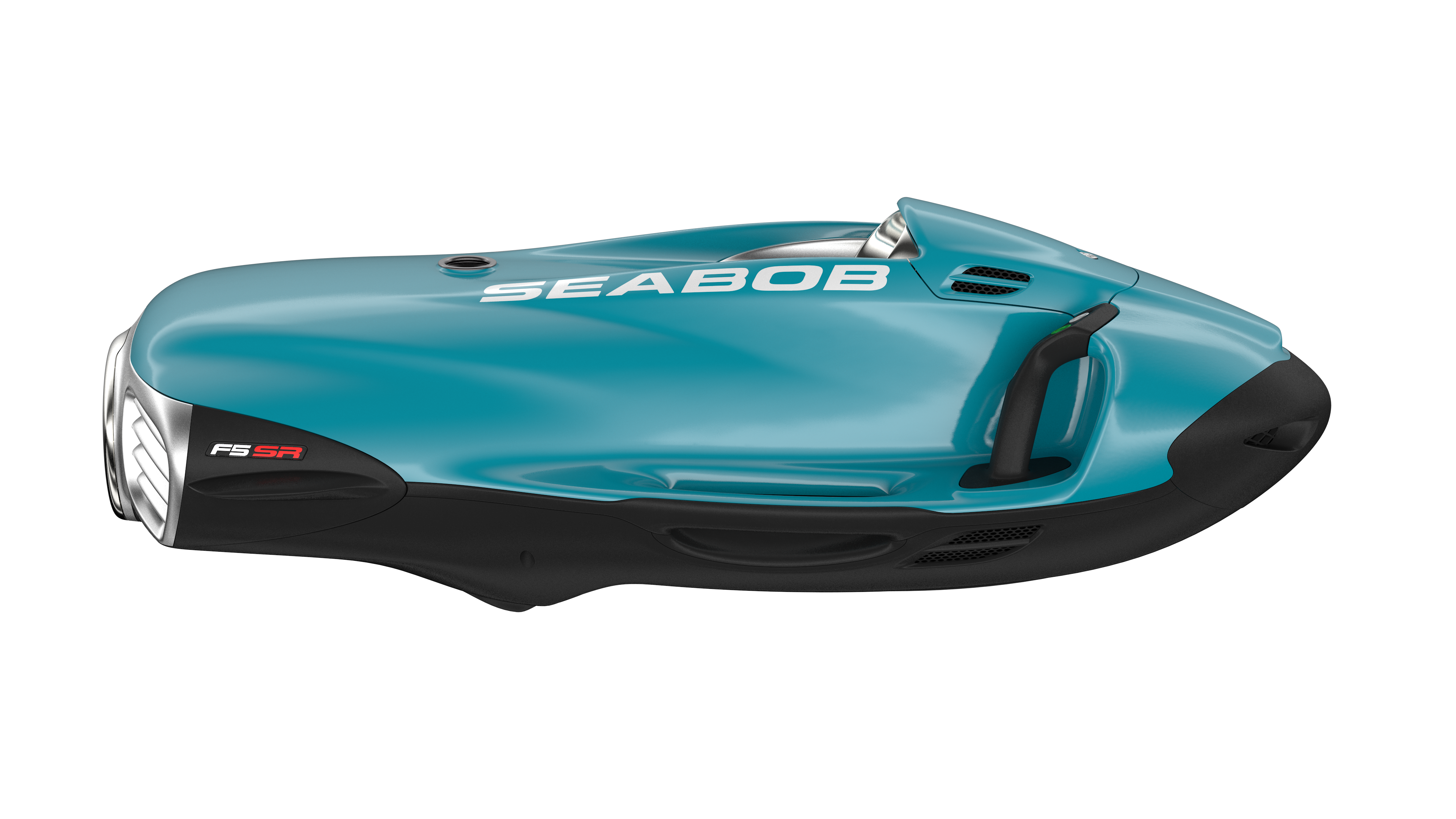

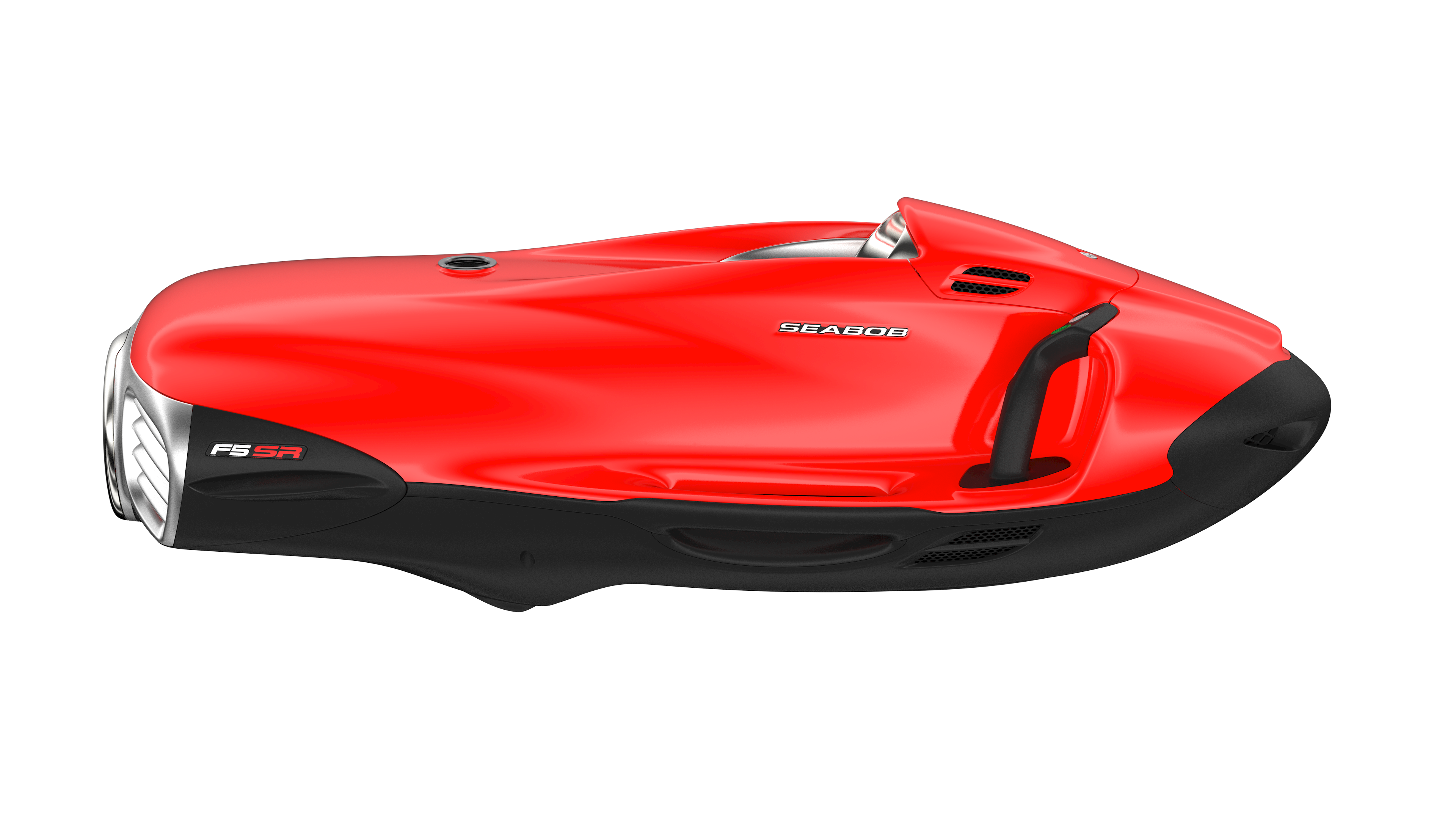

As a standard, it has the SEABOB Cam system with two integrated cameras, a built-in storage system and a Wi-Fi transmission module. Additionally, the SEABOB F5 SR is equipped with a valuable chrome package as standard. You have the option to finish the SEABOB F5 SR with one of the surfaces from SEABOB’s entire color range without any extra charge. Moreover, the SEABOB F5 SR has two rear fins for driving stability. These rear fins once again improve the maneuverability during diving excursions and emphasize its sporty design.

The SEABOB-Jet is the absolute paragon of cutting-edge technology. For the vehicle to live up to this claim, the drive unit was made using premium carbon elements, established ceramic coatings and precious metals resistant to saltwater. Meticulously hand-crafted, this water sports vehicle is made of top-grade materials. The uncompromising quality standard is reflected in each detail.

The specially developed, high-performance electric-drive mechanism with its environmentally friendly technology is an exemplary innovation. The motor is a high-torque synchronized drive unit featuring a microprocessor-controlled 3-phase sinus power management system. The application of cutting-edge technology enables this motor to achieve the ideal amount of torque with outstanding efficiency. All this, and yet the overall design remains very compact. The power for the drive mechanism is provided by highly efficient Lithium-Ion accumulators. These high-performance special accumulators are a top-class quality component in the propulsion concept of the SEABOB.

The worldwide patented E-Jet Power System works according to the principle of water displacement. The water is sucked in by the powerfully rotating impeller and forced out in the jet channel under high pressure. The thrust developed in this way propels the SEABOB forward in superior fashion. Maximum thrust requiring little energy makes the E-Jet Power System a unique drive mechanism for powerful watercraft. Thanks to its electro-technology, the system is environmentally friendly and offers extremely low operating costs.

The central cockpit is located exactly in the driver’s field of vision. All important technical data from the engine electronics is shown accurately via the TFT color display. It provides the pilot with information on the current driving performance and the selected power level. The accumulator charge state allows you to
reliably keep track of the residual capacity. Furthermore, the driver receives up-to-date information regarding his diving depth and water temperature. The programming functions of the menu can also be conveniently controlled via the TFT display.

A SEABOB-Jet is the absolute embodiment of state-of-the-art technology. The pilot steers his water sports craft via two intelligent control grips with Piezo technology. The drive mechanism is activated by squeezing the trigger. Applying light pressure to the green sensor accelerates the device in continuous powerful thrusts until the desired speed is reached. Propulsion is reduced by pressing the red sensor, thereby slowing down the SEABOB. If required, the craft can be brought to an immediate stop simply by releasing the trigger. Two further Piezo buttons enable the pilot to program an individual data menu. This includes the electronically controlled setting of diving depth, operation time and additional parameters.

The SEABOB F5 SR, E-Jet Power System Driver is a 4.5kW performance system that will provide up to 13.7 mph (22 km/h) on the surface and 12.4 mph (20 km/h) underwater for a run time of 60-muintes. The standard charge time is 8-hours and a quick charge option when using 230-volt charger will charge to vehicle in 1.5-hours (see SKU: SBBF5QCH). The vehicles’ maximum operating depth is 130′ (40m). The SEABOB F5 measures (L x W x H) 45.35″ x 21.14″ x 14.65″ (115.2cm x 54.3cm x 37.2cm), weighs approximately 75 lbs and has 39 lbs of buoyancy.
